LD10

LD10

Technical Specifications PDF

Ask for the product

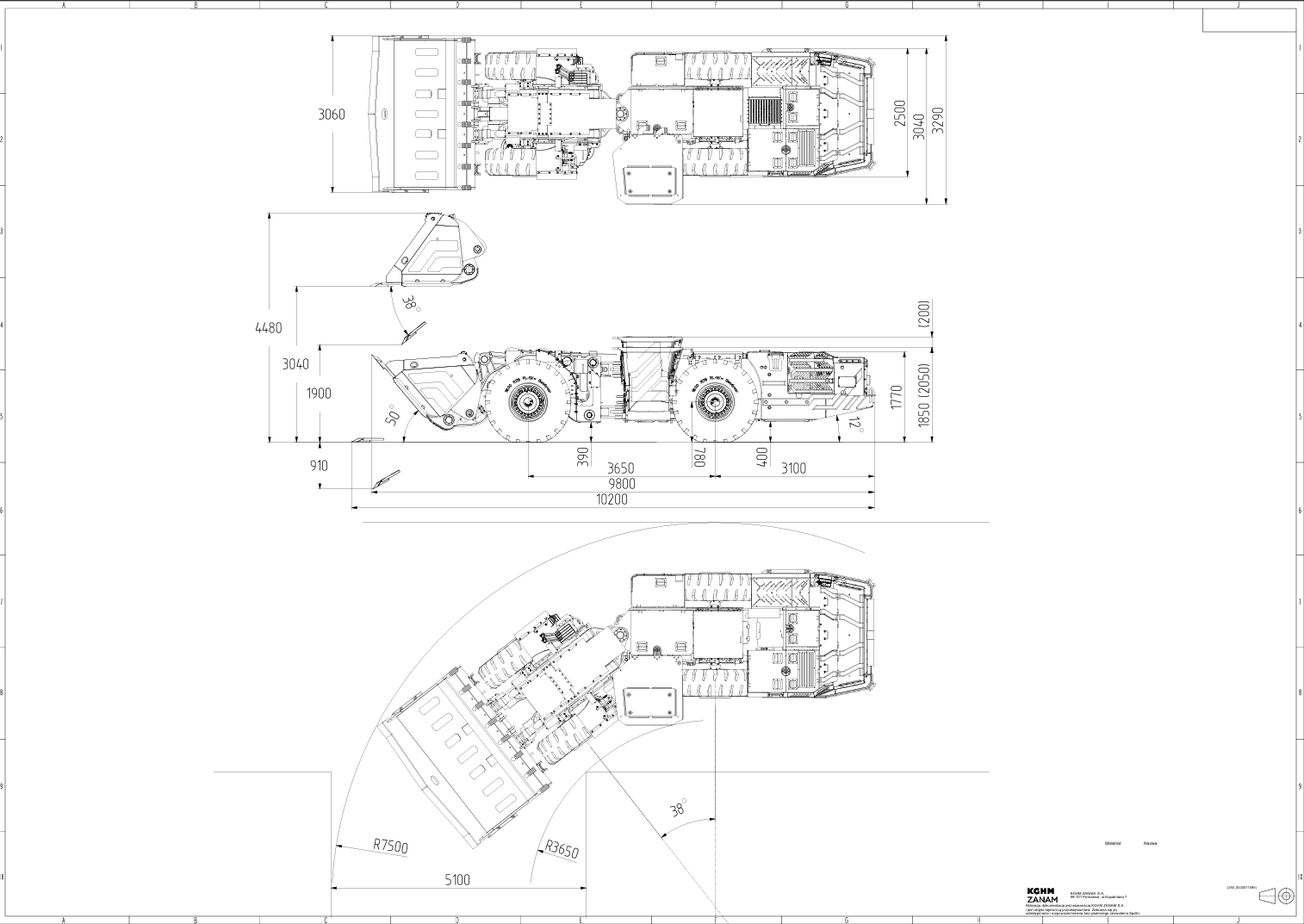

Technical specification

  • Length:

  • 9 800 mm

  • Width:

  • 3 290 mm

  • Height:

  • 1 850/2050 mm

  • Total weight:

  • 30 900kg

  • Standard bucket:

  • 4,3 m3

  • Tramming capacity:

  • 100 kN

  • Power rating:

  • 225 kW

  • Exhaust gas purity class:

  • Stage V

  • 1st gear

  • 5,0 km/h

  • 2nd gear

  • 9,0 km/h

  • 3rd gear

  • 15,0 km/h

  • 4th gear

  • 24,0 km/h
